Accident damage is an unfortunate reality for many performance cars, but repairing a Lotus presents a unique set of challenges. Lightweight composite construction, specialist paint finishes and the precise fit of fibreglass body panels require a very different approach to conventional vehicle repair.

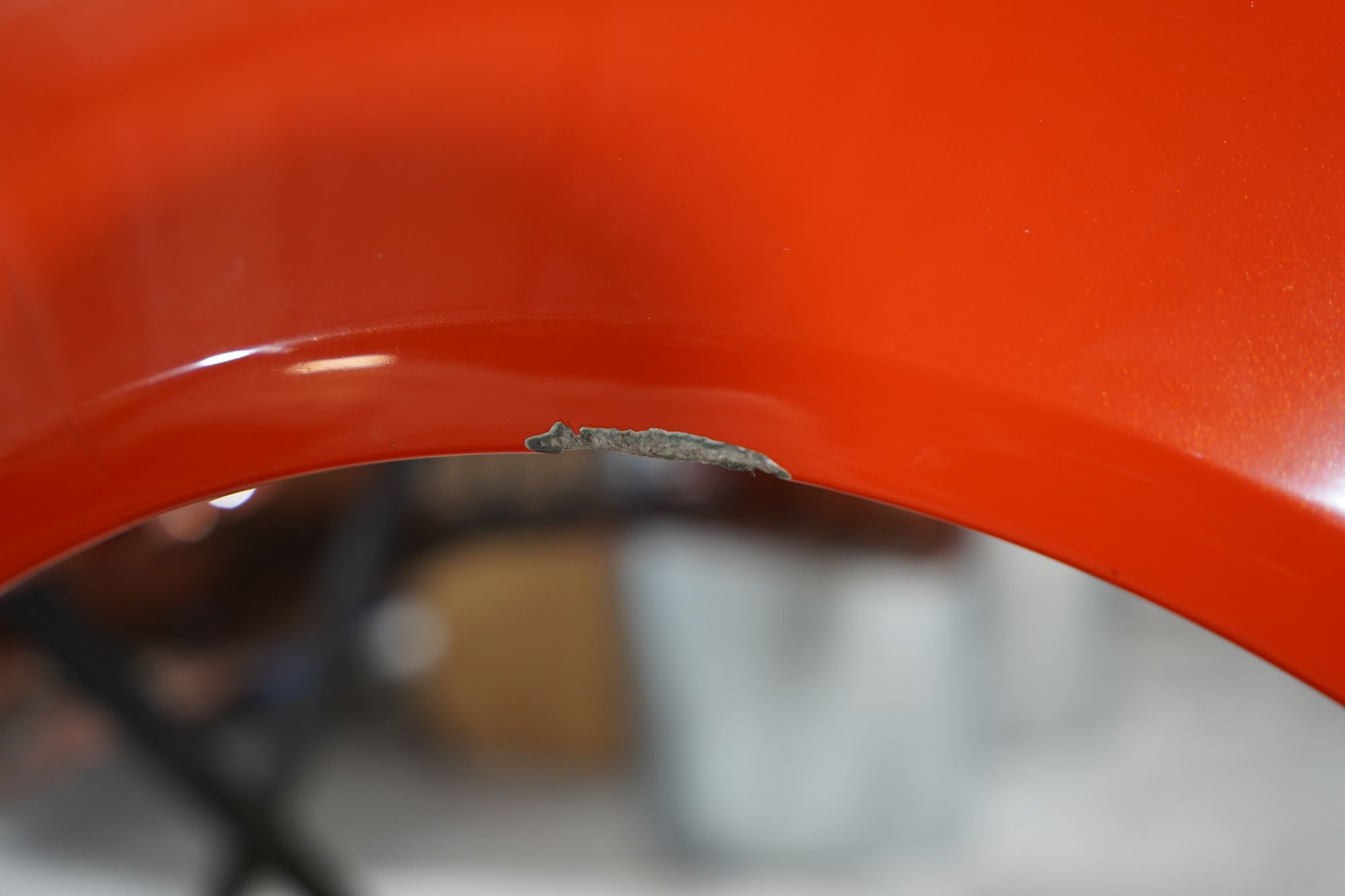

This Lotus Exige V6 Cup, finished in C182 Metallic Lotus Exige Orange, arrived at Hilton & Moss following damage to the front wheel arch. The owner wanted the car returned to its original condition without compromising originality or repair quality, making specialist knowledge of Lotus construction essential.

Having previously visited Hilton & Moss through the Lotus Drivers Club, the owner was already familiar with the company's facilities and expertise. Once the car arrived, the team liaised directly with his insurer, managing the repair process from the initial assessment through to approval, allowing the owner to focus on getting the car back on the road.

Initial Assessment

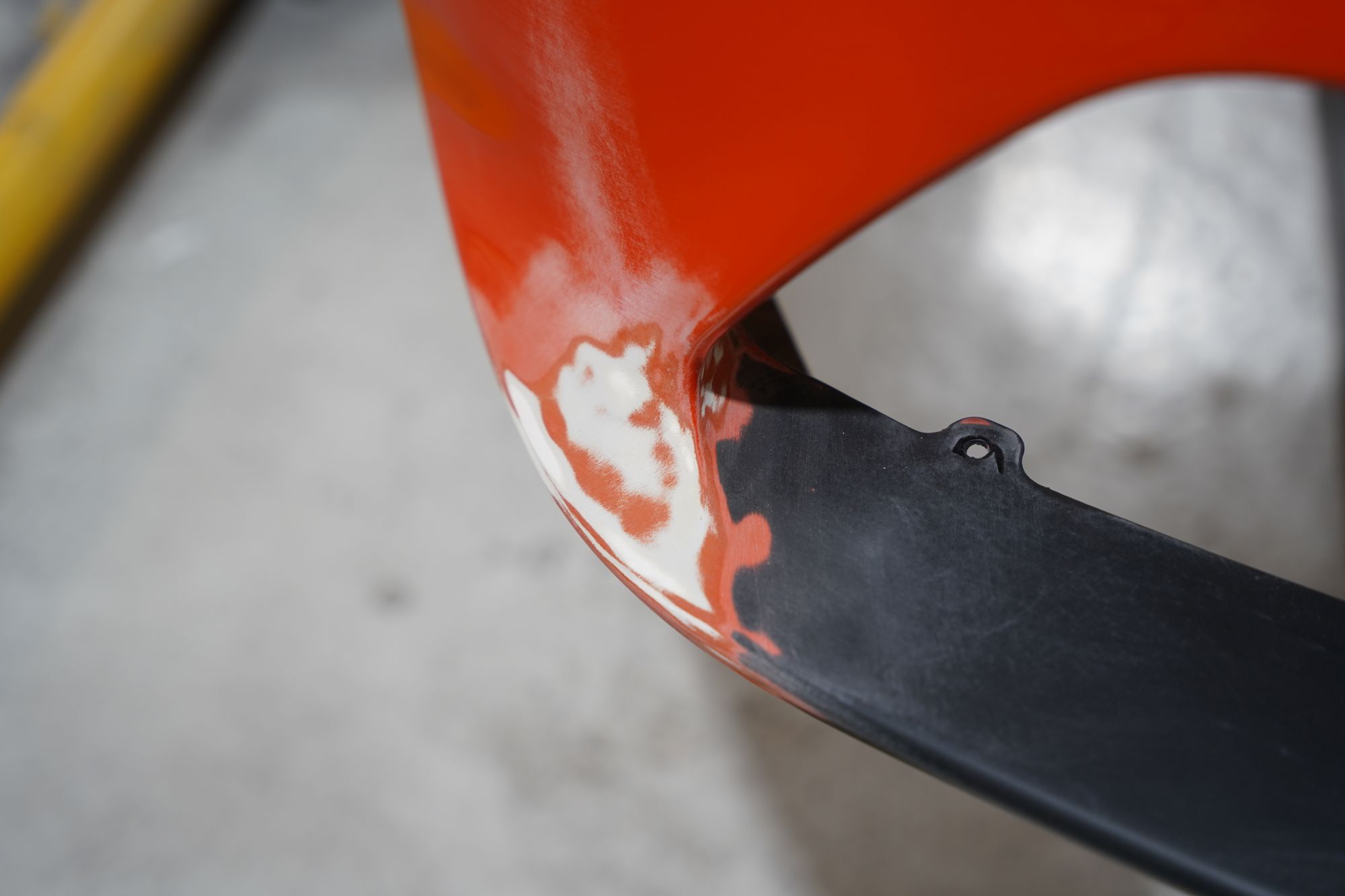

Following a detailed inspection, it was established that although the front clamshell had sustained noticeable damage, it remained structurally repairable. Rather than replacing the complete panel, the decision was made to retain the original clamshell through a comprehensive fibreglass repair.

Preserving original body panels wherever possible is often preferable, particularly on specialist performance cars where panel fit and factory alignment can be difficult to replicate.

Removing the Front Clamshell

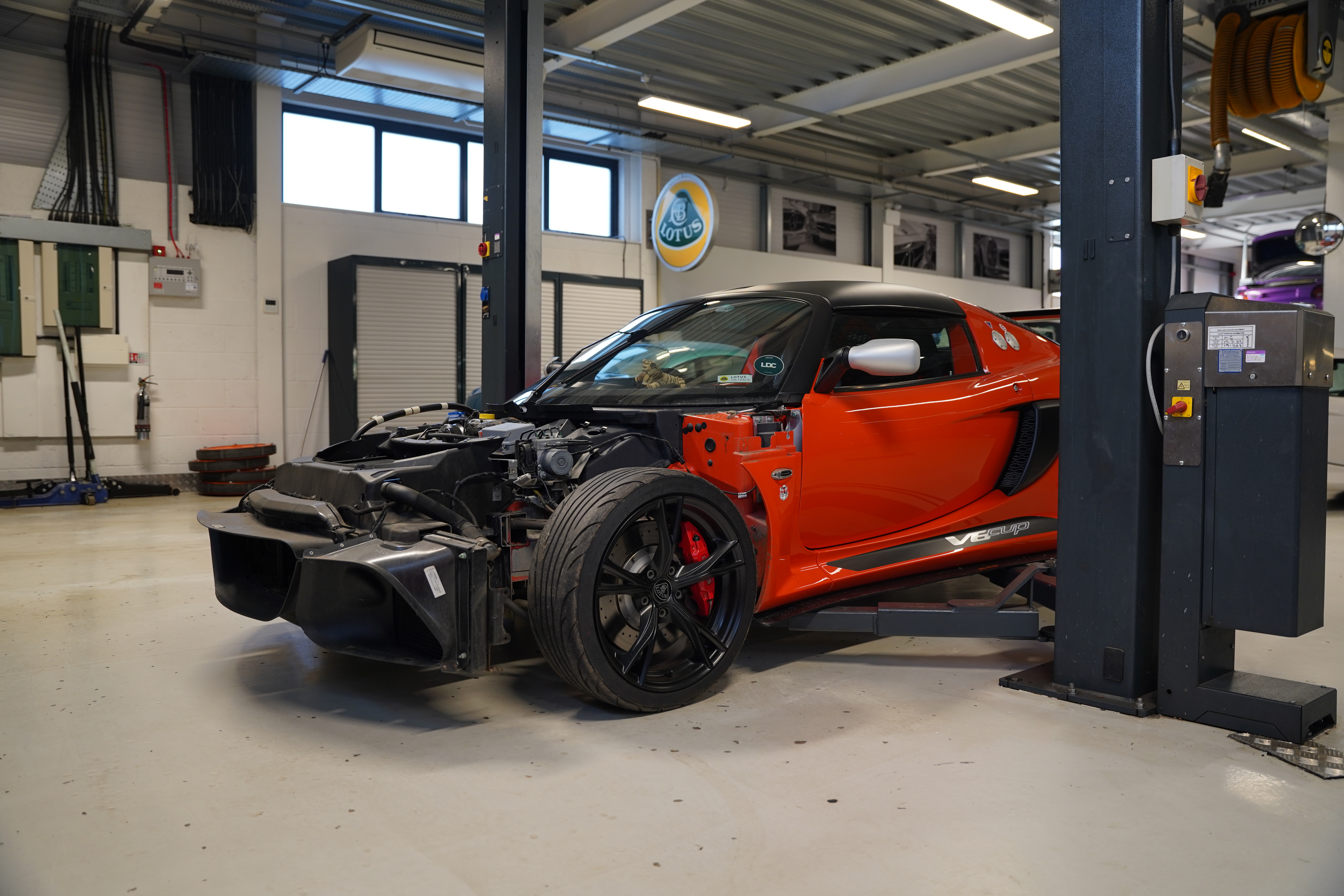

The repair began with the careful removal of the complete front clamshell.

Unlike conventional steel-bodied vehicles, the Lotus Exige relies on lightweight composite panels that require careful handling during removal. Every fixing, mounting point and adjoining panel was methodically dismantled to avoid introducing unnecessary stress into the surrounding bodywork.

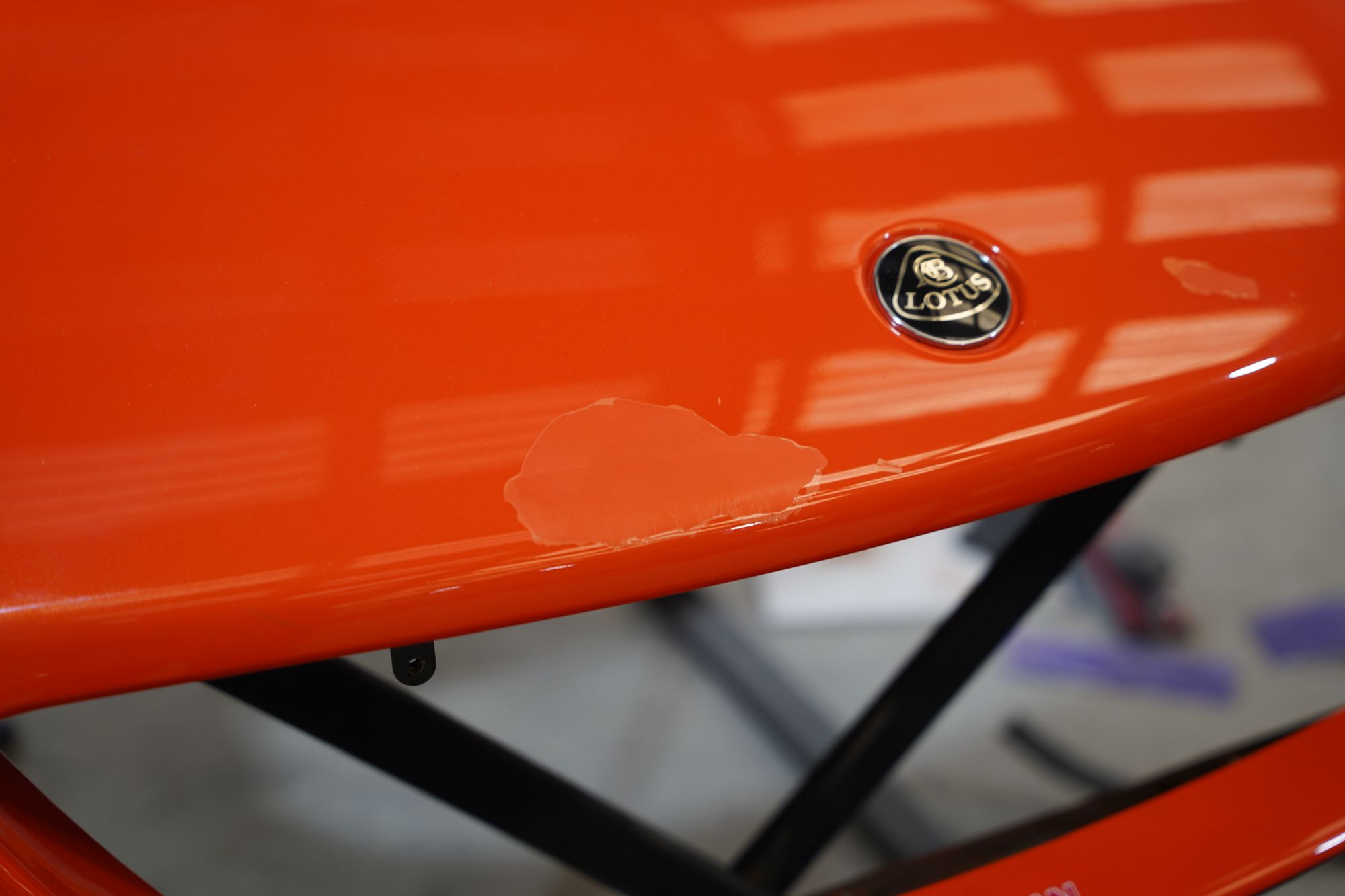

Before structural repairs could begin, the existing paint protection film was removed from the front section of the vehicle.

Fibreglass Reconstruction

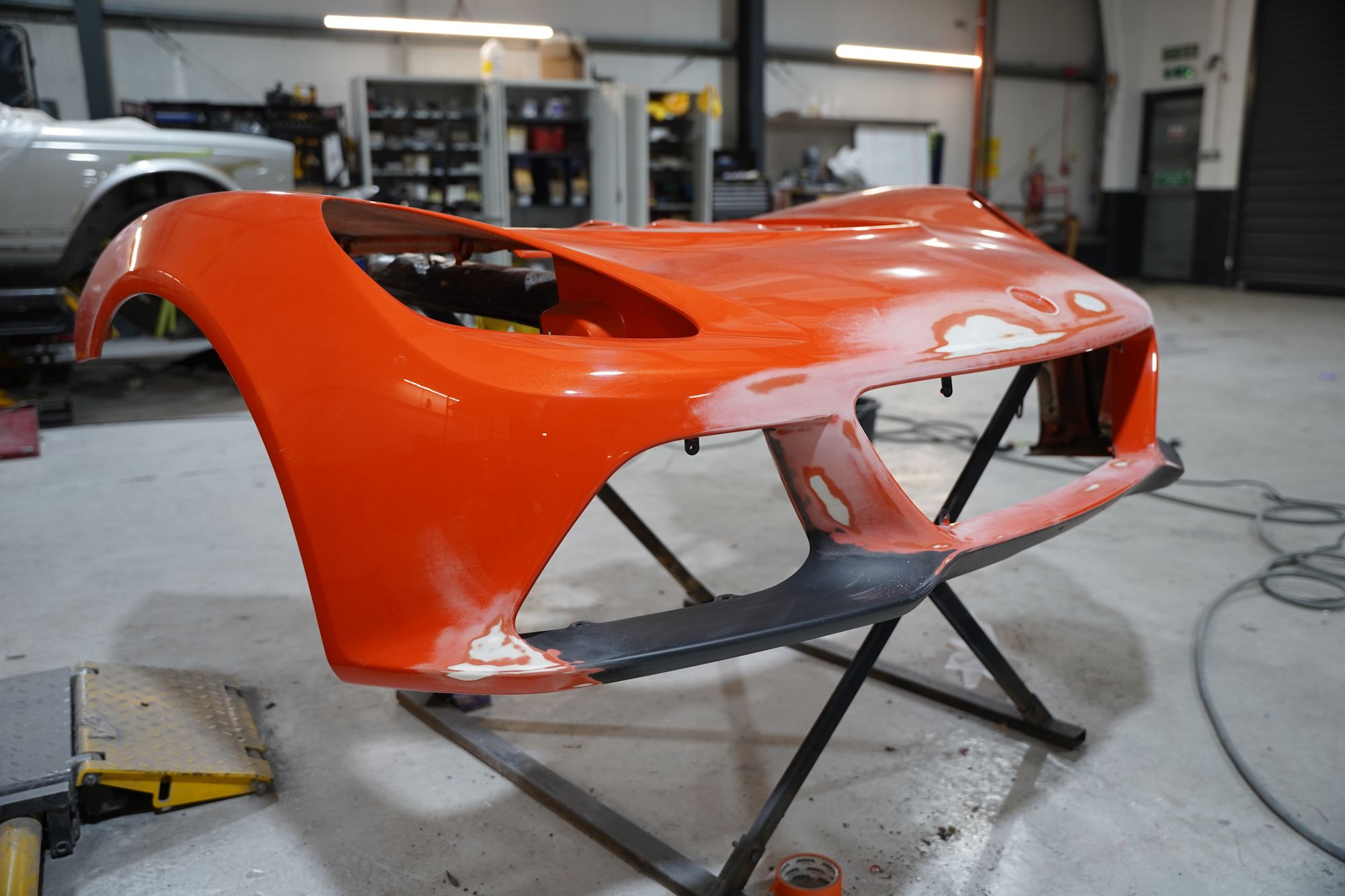

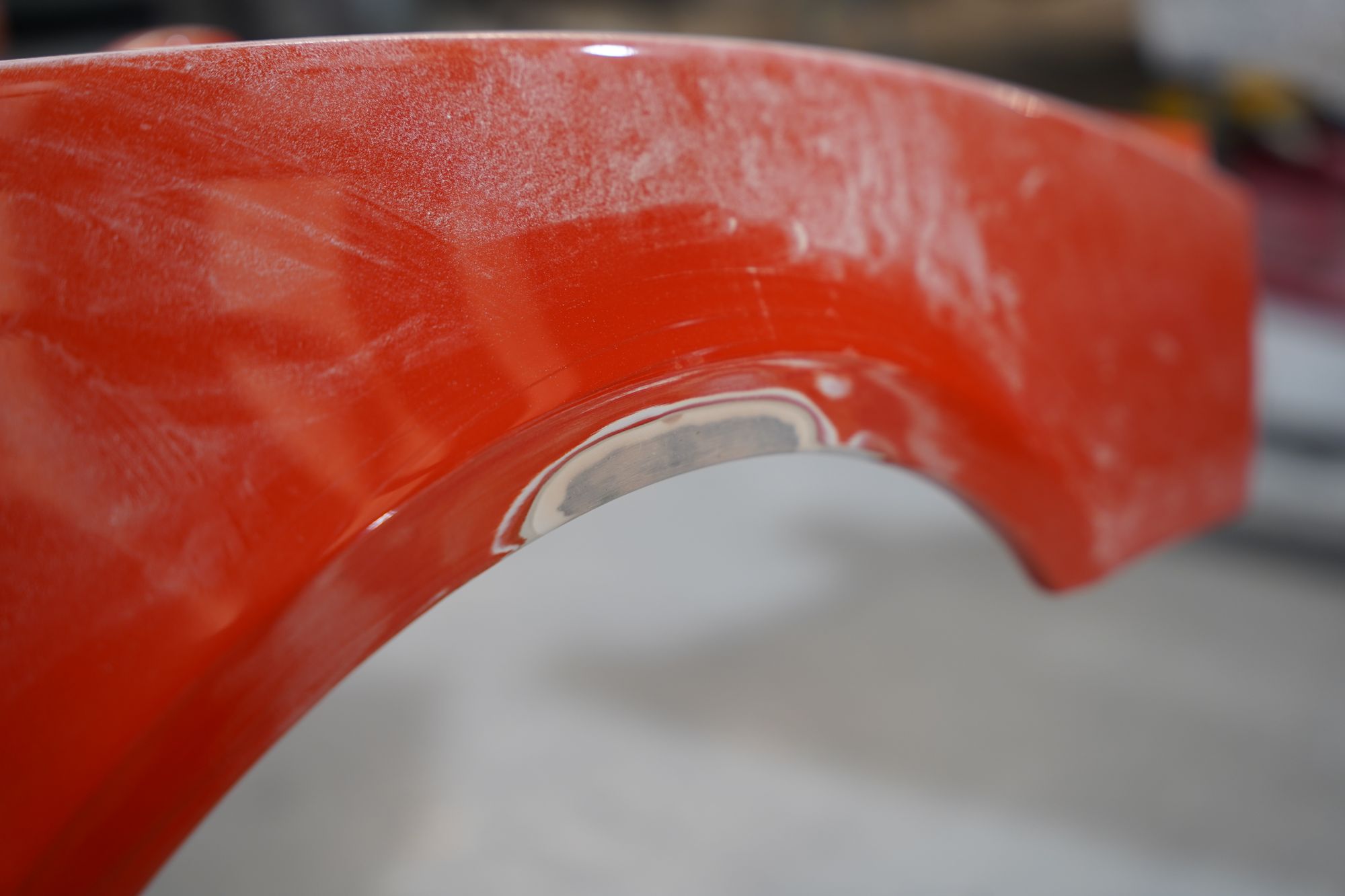

With the damaged panel separated from the vehicle, technicians stripped the affected areas back to the original gel coat, exposing the full extent of the damage.

Using traditional composite repair techniques, the damaged sections were rebuilt from the inside out. Multiple layers of fibreglass matting and resin were carefully applied to restore the panel's original strength before the external surface was reshaped and refined.

The repair process focused not only on restoring the visible damage but also on returning the structural integrity of the clamshell to its original standard.

Surface Preparation and Paint

Once the structural work had been completed, attention turned to refinishing the panel.

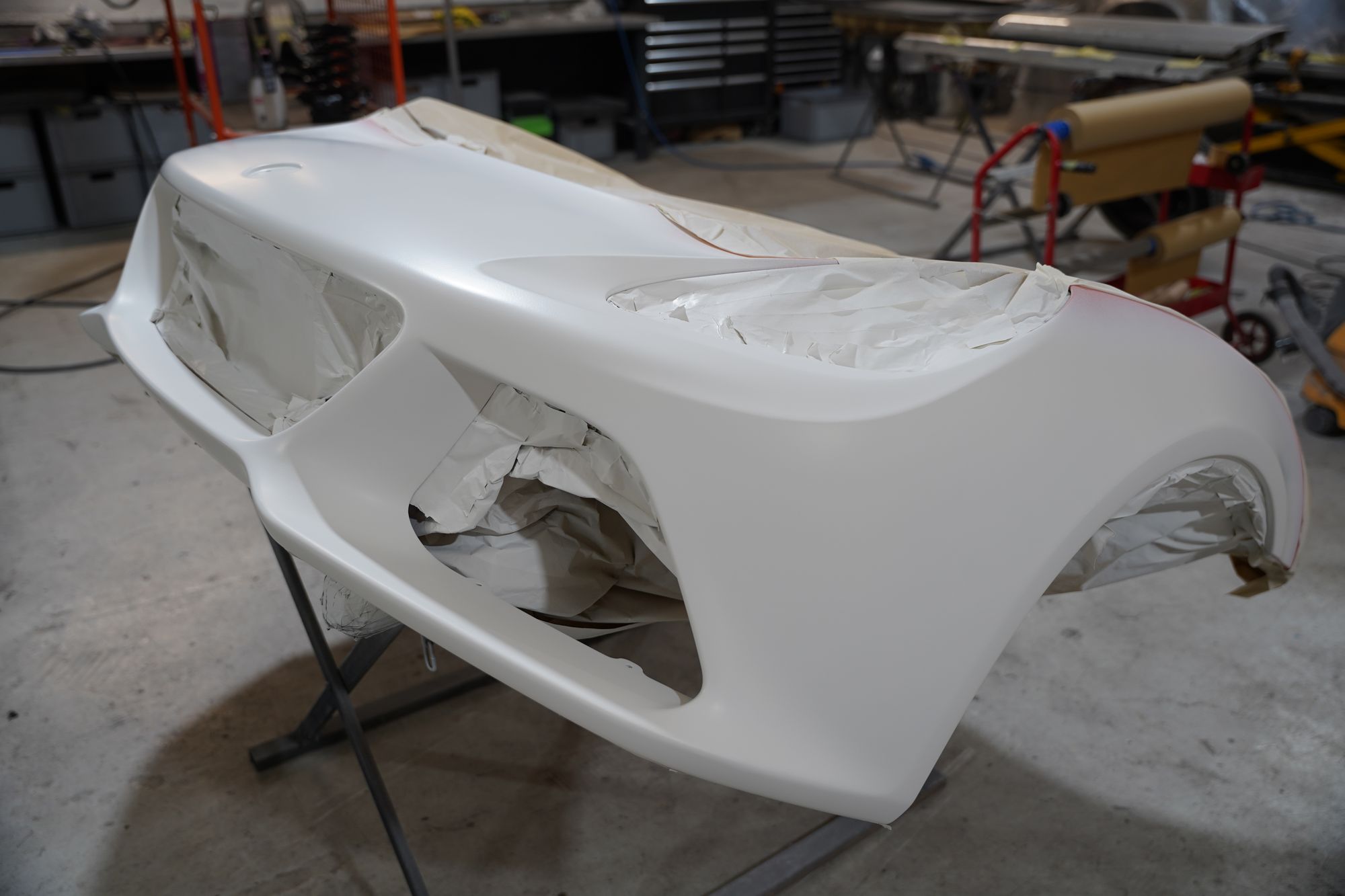

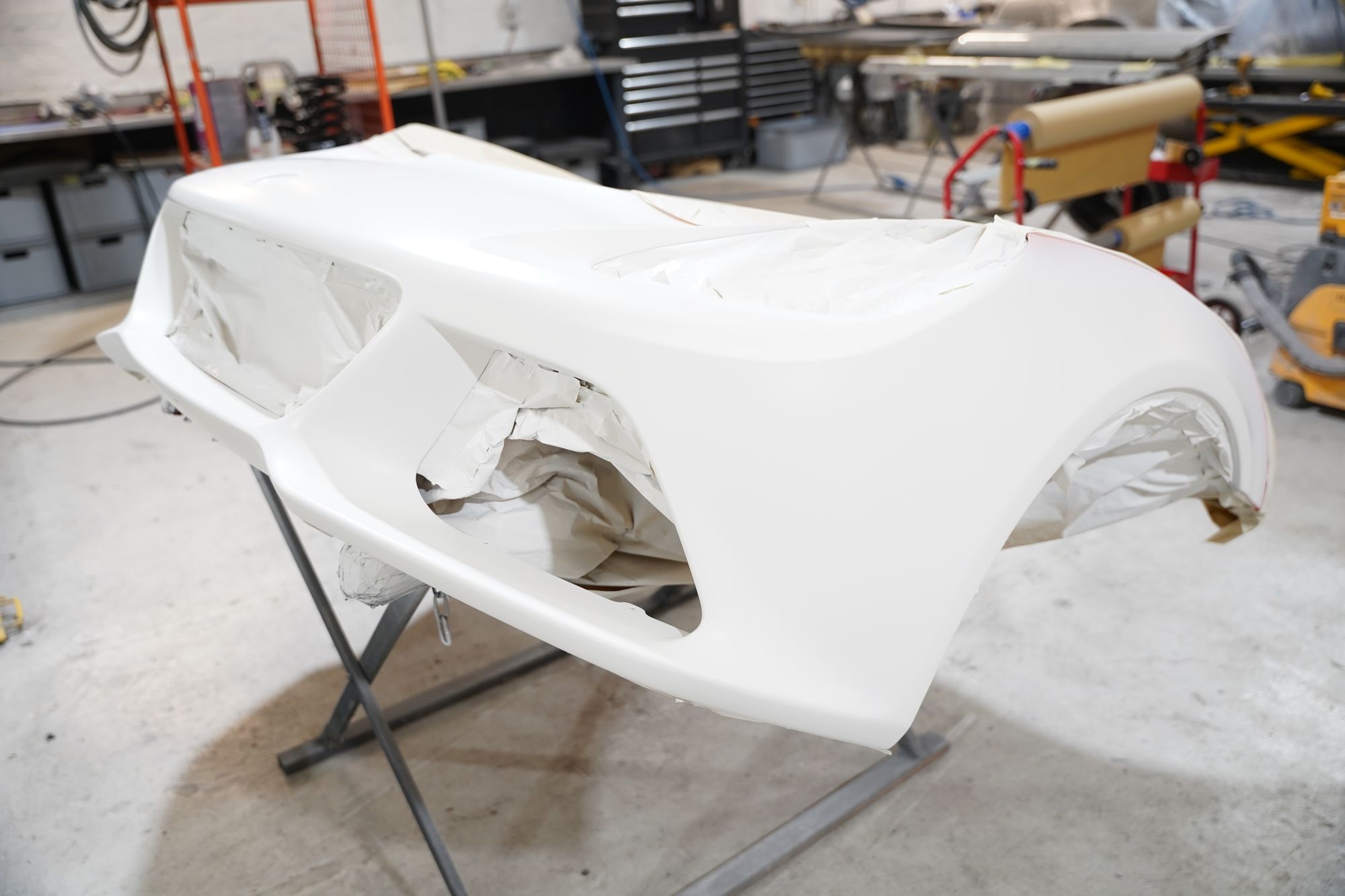

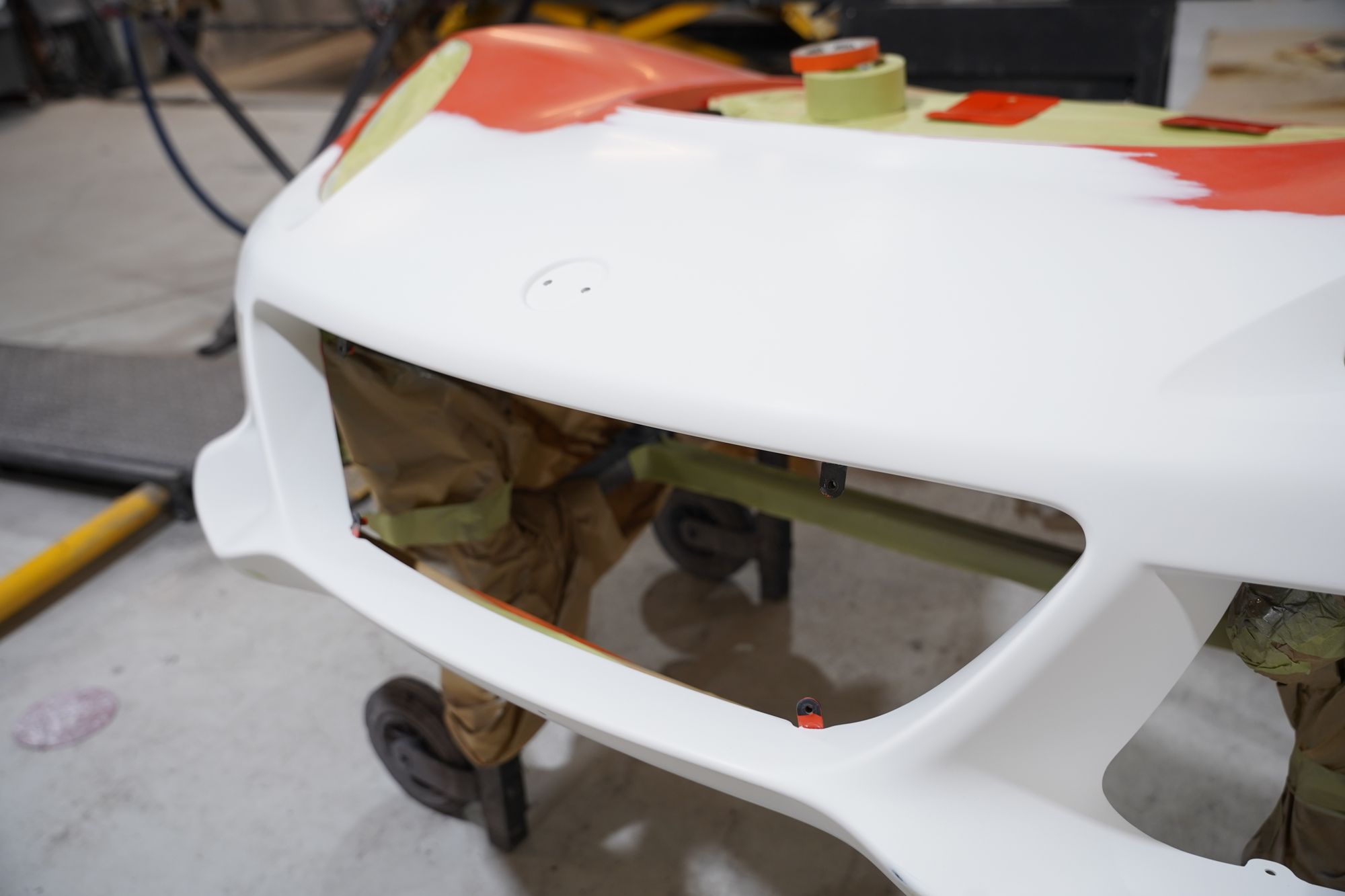

After extensive preparation and priming, the clamshell was moved into one of Hilton & Moss' dedicated paint booths.

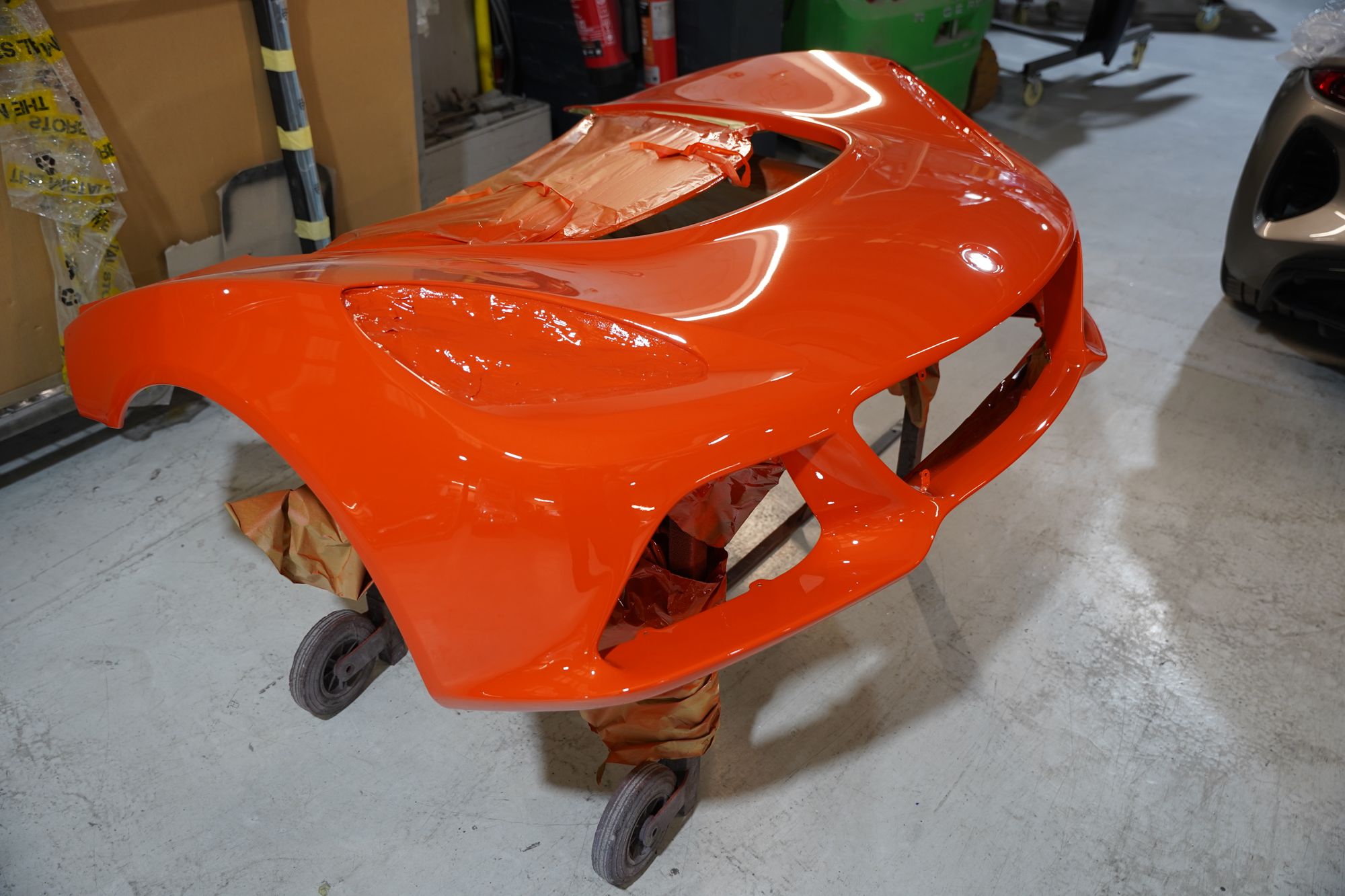

Matching C182 Metallic Lotus Exige Orange requires considerable experience, as the factory finish is achieved through a complex three-stage pearl paint process. A bespoke batch of paint was mixed before being carefully applied to the repaired clamshell and blended into the adjacent panels to achieve a seamless finish.

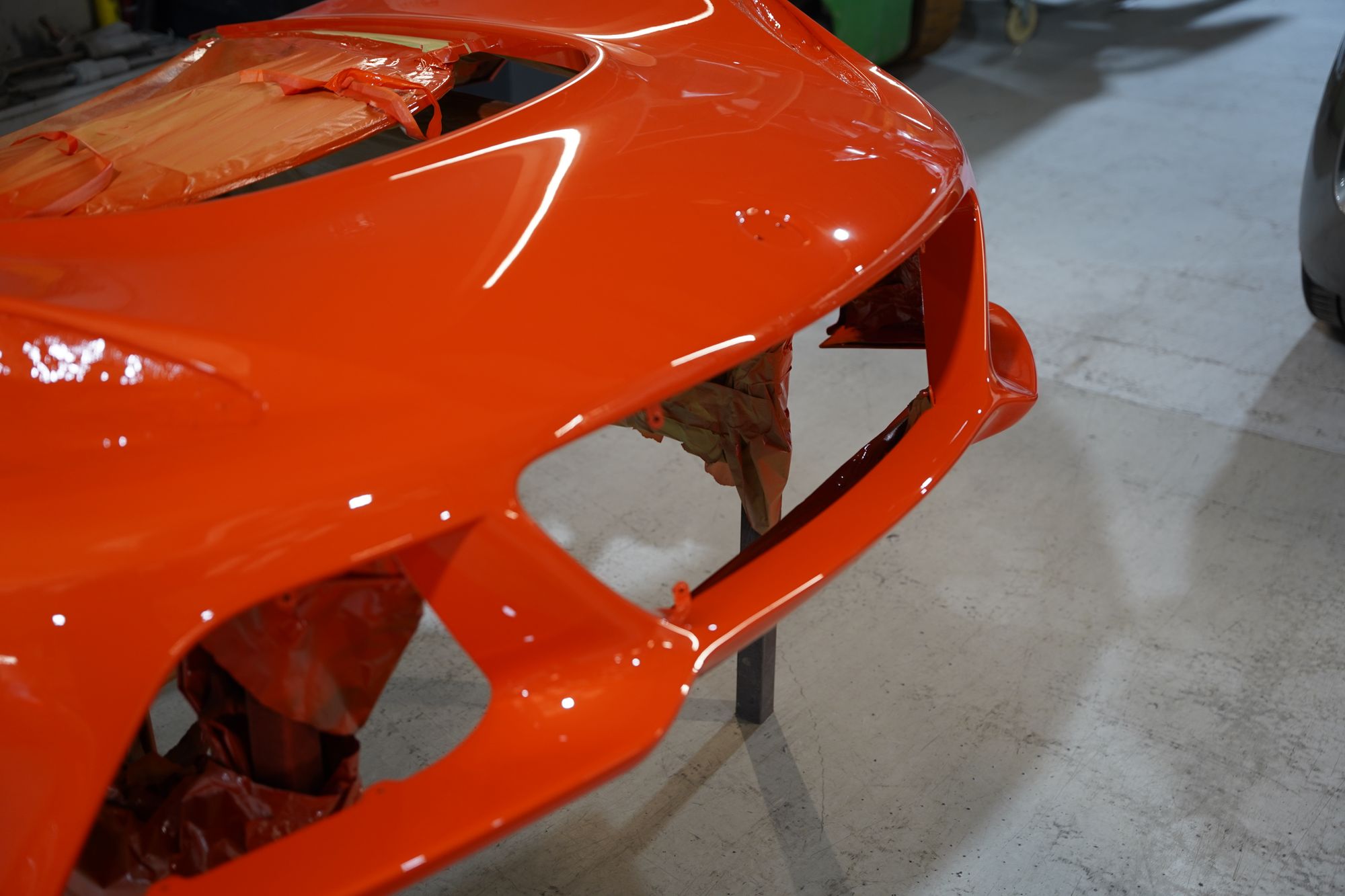

Following lacquer application, the paintwork was wet sanded and machine polished to remove any minor imperfections and recreate the deep gloss expected of a factory finish.

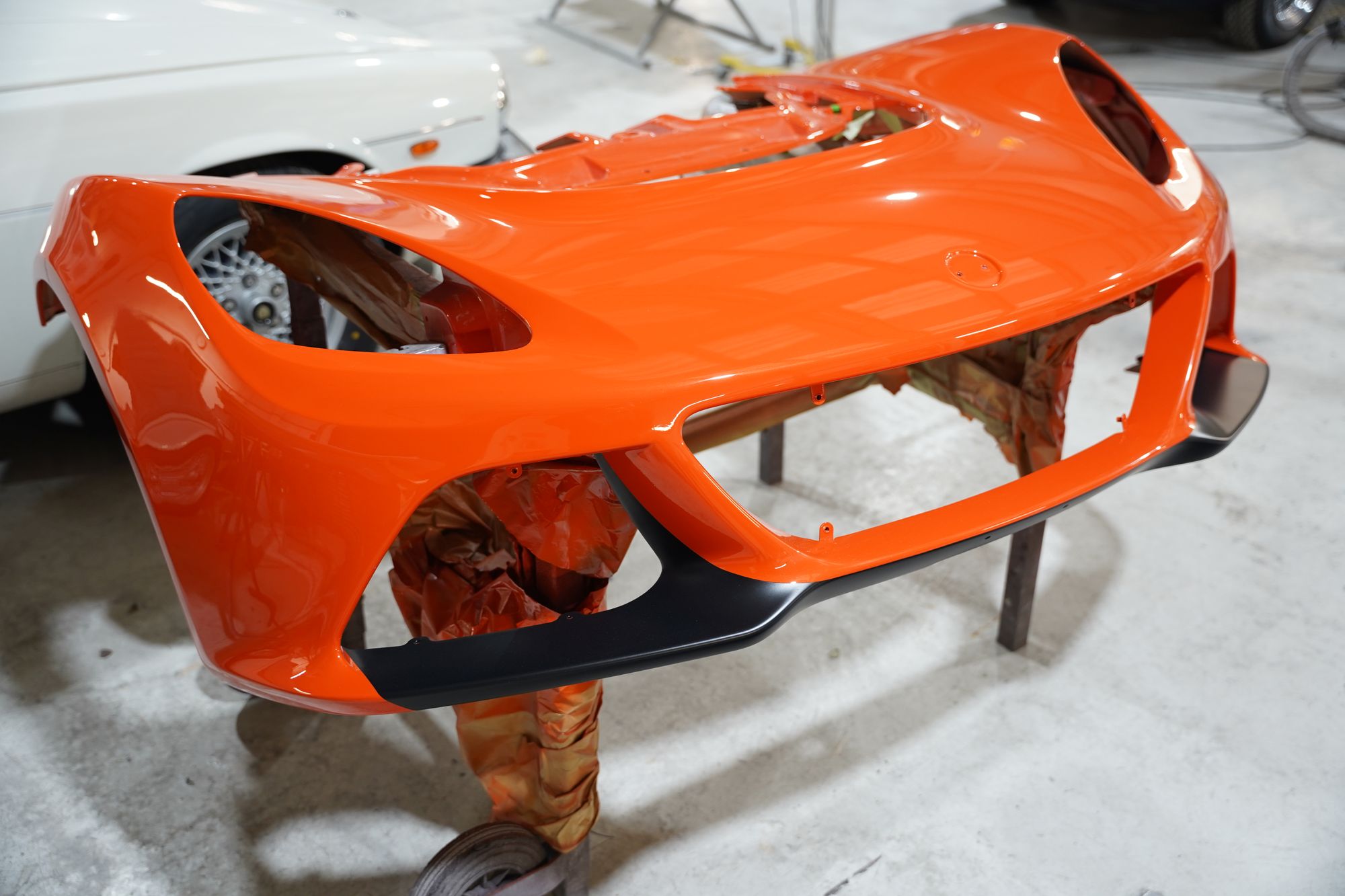

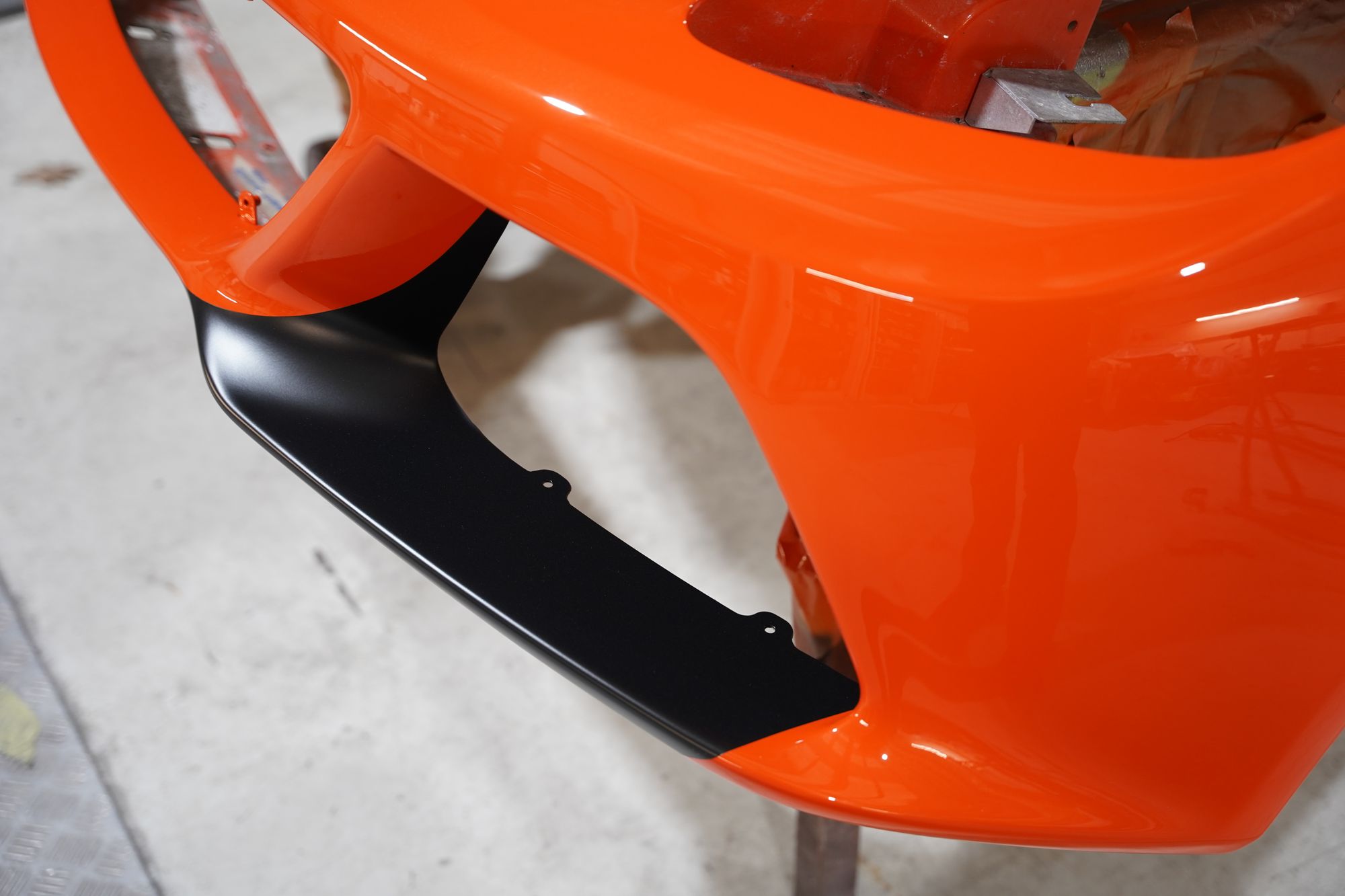

The satin black lower bumper detailing was then refinished to match the original factory appearance.

Additional Mechanical Work

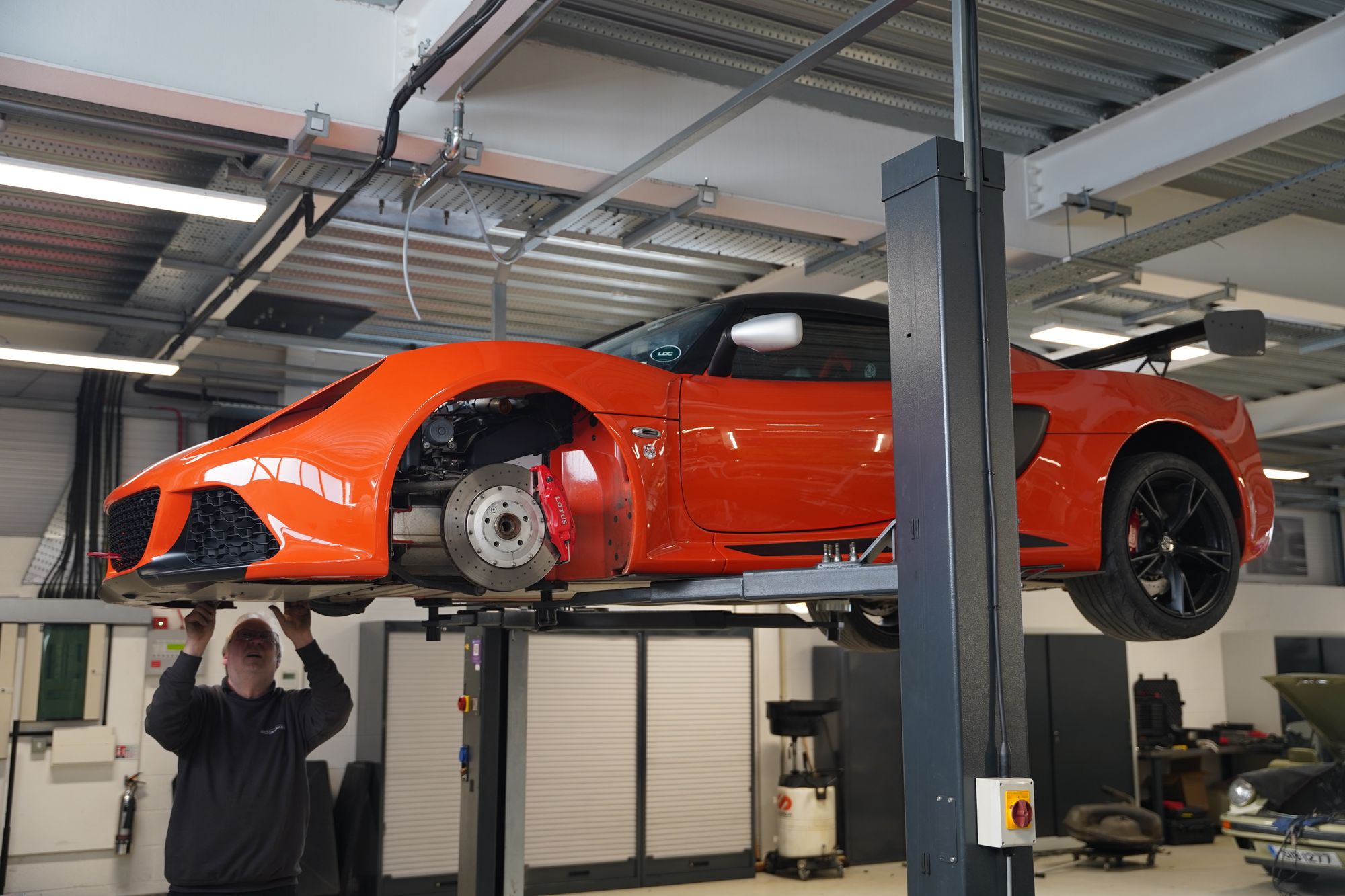

While the vehicle was dismantled, the opportunity was taken to inspect the car's Nitron suspension system.

The dampers showed signs of wear consistent with regular use and were removed, disassembled and serviced before being reinstalled. Routine servicing of Nitron suspension is an important aspect of maintaining both performance and ride quality, particularly on vehicles that see enthusiastic road or track use.

Completing this work while the front of the vehicle was already dismantled allowed the owner to address preventative maintenance at the same time as the accident repair.

Reassembly and Finishing

Following completion of the paintwork, the front clamshell was carefully refitted and aligned to the body before final adjustments were made to ensure factory panel gaps throughout.

Fresh paint protection film was then applied to the repaired section, restoring protection against future stone chips and road debris.

The vehicle underwent a final inspection before receiving a comprehensive detail to complete the repair.

The Finished Result

Following completion, the repair was virtually undetectable, with the original clamshell retained and the paintwork accurately matched to the surrounding panels. The additional suspension servicing ensured the car also left the workshop performing at its best mechanically.

For owners of specialist vehicles such as the Lotus Exige, repairs often involve far more than simply replacing damaged parts. Understanding the construction methods, materials and engineering behind the car is essential to preserving both its appearance and its driving characteristics.
